clp-json quick-start#

This page will walk you through how to start CLP and use it to compress and search JSON logs.

Caution

If you’re using a clp-json release, you can only compress and search JSON logs. This limitation will be addressed in a future version of CLP.

Starting CLP#

To start CLP, run:

sbin/start-clp.sh

Note

If CLP fails to start (e.g., due to a port conflict), try adjusting the settings in etc/clp-config.yml and then run the start command again.

Compressing JSON logs#

To compress some JSON logs, run:

sbin/compress.sh --timestamp-key '<timestamp-key>' <path1> [<path2> ...]

  • <timestamp-key> is the field path of the kv-pair that contains the timestamp in each log event.

    • E.g., if your log events look like {"timestamp": {"iso8601": "2024-01-01 00:01:02.345", ...}}, you should enter timestamp.iso8601 as the timestamp key.

    Caution

    Log events without the specified timestamp key will not have an assigned timestamp. Currently, these events can only be searched from the command line (when you don’t specify a timestamp filter).

  • <path...> are paths to JSON log files or directories containing such files.

    • Each JSON log file should contain each log event as a separate JSON object, i.e., not as an array.

The compression script will output the compression ratio of each dataset you compress, or you can use the UI to view overall statistics.

Compressed logs will be stored in the directory specified by the archive_output.storage.directory config option in etc/clp-config.yml (archive_output.storage.directory defaults to var/data/archives).

Tip

To compress logs from object storage, see Using object storage.

Sample logs#

For some sample logs, check out the open-source datasets.

Searching JSON logs#

You can search your compressed logs from CLP’s UI or the command line.

In clp-json, queries are written as a set of conditions (predicates) on key-value pairs (kv-pairs). For example, Figure 1 shows a query that matches the first log event in Figure 2.

ctx: "conn11" AND msg: "*write concern*"

Figure 1: An example query.

{
  "t": {
    "$date": "2023-03-21T23:46:37.392"
  },
  "ctx": "conn11",
  "msg": "Waiting for write concern."
}
{
  "t": {
    "$date": "2023-03-21T23:46:37.392"
  },
  "msg": "Set last op to system time"
}

Figure 2: A set of JSON log events.

The query in Figure 1 will match log events that contain the kv-pair "ctx": "conn11" as well as a kv-pair with key "msg" and a value that matches the wildcard query "*write concern*".

A complete reference for clp-json’s query syntax is available on the syntax reference page.

Searching from the UI#

To search your compressed logs from CLP’s UI, open http://localhost:4000 in your browser (if you changed webui.host or webui.port in etc/clp-config.yml, use the new values).

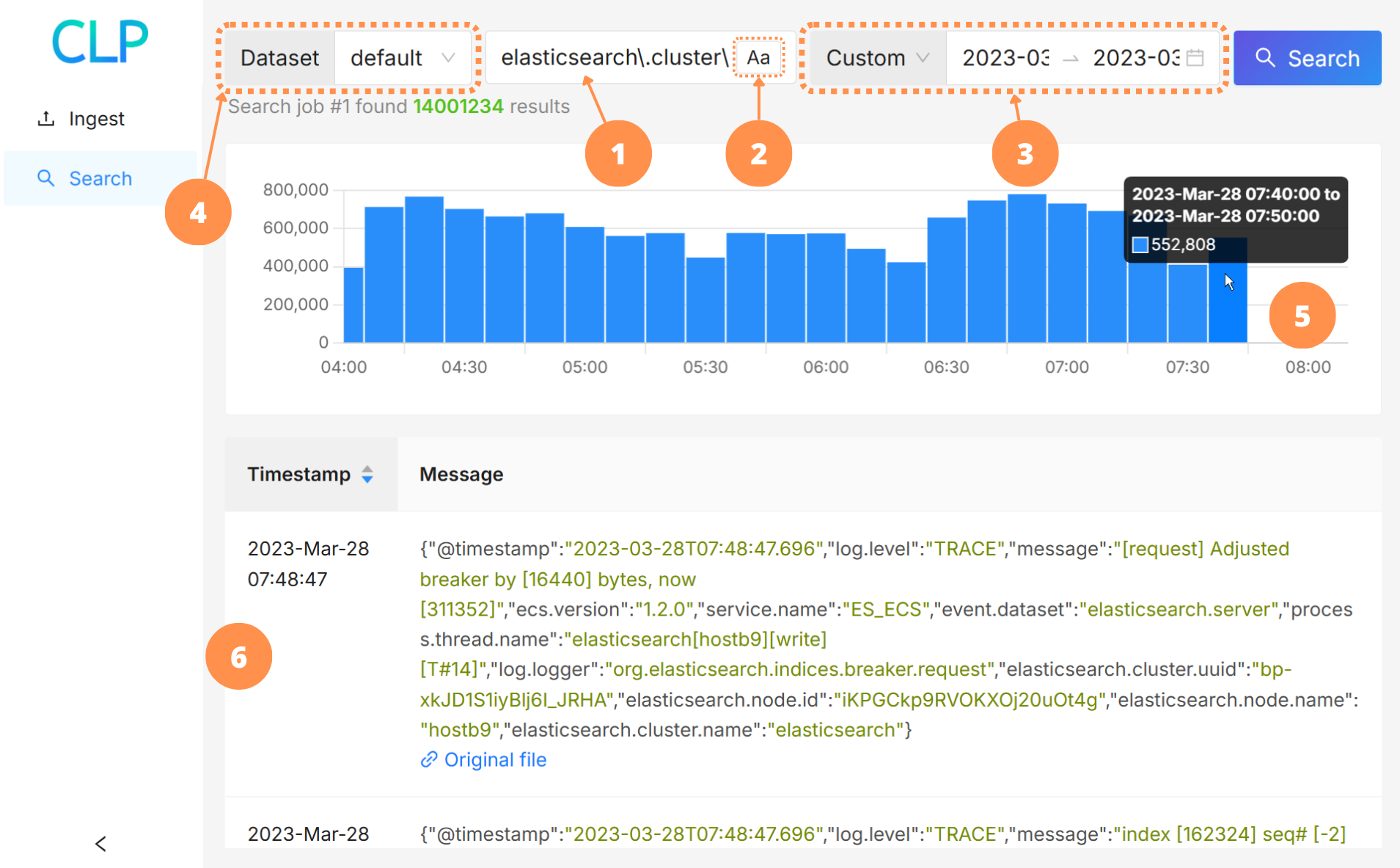

Figure 3 shows the search page after running a query.

../../_images/clp-json-search-ui.png

Figure 3: The search page in CLP’s UI.

The numbered circles in Figure 3 correspond to the following elements:

  1. The query input box. The format of your query should conform to CLP’s JSON search syntax.

  2. The query case-sensitivity toggle. When turned on, CLP will search for log events that match the case of your query.

  3. The time range selector. CLP will search for log events that are in the specified time range. You can select a preset filter (e.g., Last 15 minutes; Yesterday) from the dropdown, or choose Custom and set the start time and end time directly.

  4. The dataset selector. CLP will search for log events that belong to the selected dataset.

  5. The search results timeline. After a query, the timeline will show the number of results across the time range of your query.

    • You can click and drag to zoom into a time range.

    • When you mouse over a bar in the timeline, a popup will display the range and the number of search results in that range.

  6. The search results.

    • You can sort by Ascending or Descending timestamp by clicking the Timestamp header in the table.

    • Each search result includes a link to the original file in which the log event was found.

Note

By default, the UI will only return 1,000 of the latest search results. To perform searches which return more results, use the command line.

Searching from the command line#

To search your compressed logs from the command line, run:

sbin/search.sh '<query>'

To narrow your search to a specific time range:

  • Add --begin-time <epoch-timestamp-millis> to filter for log events after a certain time.

    • <epoch-timestamp-millis> is the timestamp as milliseconds since the UNIX epoch.

  • Add --end-time <epoch-timestamp-millis> to filter for log events before a certain time.

To perform case-insensitive searches, add the --ignore-case flag.

Caution

To match the convention of other tools, by default, searches are case-insensitive in the UI and searches are case-sensitive on the command line.

Stopping CLP#

If you need to stop CLP, run:

sbin/stop-clp.sh
